A2 Industrial Gland

A2 Glands are weatherproof cable glands for use with all types of unarmoured cables. It can also be used in corrosive conditions when protected with shrouds.

Glands entry rated at IP66 when used with SES entry thread seal. PCP displacement seal ensure effective seal (IP66) to outer sheath easy and fast to install, suitable for most environments. General use for indoor and outdoor application.

A2F: for use when it is essential to provide either an IP66 or an explosion proof seal on the outer sheath.

Accessories: Shrouds, Earth Tags, Lock Nuts, SES Entry Threads seals.

Enty Threads: Metric Thread available as standard. Other thread forms e.g. BS conduit, BSP, NPT and PG available on request.

Sizes Available: M16 to M100

Manufactured as per BS6121 PT-1, 1989, from brass as standard material.






XT Industrial Gland

Brass gland for use with all types of flexible wire braid cable (eg. SY / CY). Used in applications where it is essential to provide an IP66 seal on the outer sheath, and clamping of the wire braid for electrical continuity.

Feathers & Use: Braided armour / earth lock. Outer PCP displacement seal concept ensure effective seal to outer sheath, Suitable to most hostile environments. Easy and fast to install.

Sizes available: M16 to M100

Manufactured as per BS6121 PT-1, 1989 from Brass as standard material.






BW Two Part Gland

BW Cable Gland use with all types of SWA cables. For indoor and dry applications.

Simple two part design with low resistant armour locking and no sealing.

Entry Threads: Metric Thread available as standard. Other thread forms e.g. BS Conduct, BSP, NPT and PG available on request.

Sizes available: M16 to M100

Accessories: Shrouds, Lock Nuts and Earth Tags available.

Manufactured as per BS 6121 PT-1, 1989 from Brass as standard material.






BWR Three Part Gland

BWR Cable Gland with LOCK RING.

BWR Cable Gland suitable for SWA cables, Positive armour locking, increased mechanical strength and effective earth continuity. For indoor and dry applications.

Entry Threads: Metric thread available as standard. Other thread forms e.g. BS Conduit, BSP, NPT, and PG available on request.

Sizes Available: M16 to M100

Accessories: Shrouds, Lock Nuts, and Earth Tags available.

Manufactured as per BS 6121 PT-1, 1969 from Brass as standard material.






CW Industrial Gland

CW Cable Gland Suitable for SWA Cables.

Application indoor & outdoor whenever it is required to provide sealing on cable outer sheath. CW glands are weatherproof glands and can be used in corrosive conditions. When protected with shroud. Positive armour locking, effective earth continuity, increased mechanical strength.

Option: Other option available for cables with braided armour double steel tape armour & flat armoured cables.

Entry Threads: Metric Thread available as standard. Other thread forms e.g. BS conduit, BSP, NPT and PG available on request.

Sizes Available: M16 to M100

Accessories: Shroud, Lock Nuts and Earth Tags, SES entry thread seal available.

Manufactured as per BS 6121 PT-1, 1989 from Brass as standard material.





E1W Industrial Gland

E1W Industrial Gland

Application indoor & outdoor, whenever it is required to provide sealing on cable outer sheath and inner sheath.

E1W glands are weatherproof glands and can be used in corrosive conditions when pretected with shroud. Positive armour locking effective earth continuity, increased mechanical strength and safety.

Entry Threads: Metric thread available as standard. Other thread forms e.g. BS Conduit, BSP, NPT, and PG available on request.

Sizes Available: M16 to M100

Accessories: Shrouds. Lock nuts, Earth Tags and SES Entry Thread Seal are available.

Option: Other option available for, cables with braided armour, double steel tape armour & flat armoured cables.

Manufactured as per BS 6121 PT-1. 1989 from Brass as standard material

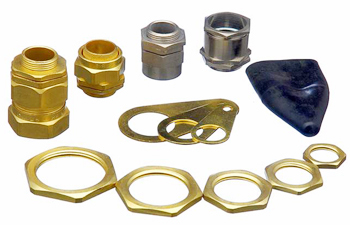

Cable Gland Kit Packing
Gland Kit is a ready to use pack
It contains Glands, Lock Nuts, Earth Tags and PVC Shrouds.
Contains two sets upto 32 mm and one set for bigger size
It is a convenient way for the user to purchase complete cable termination as one is assured of all the
required parts.





  Any kind of brass cable glands can be developed and supplied exactly as per customer drawings and samples.
